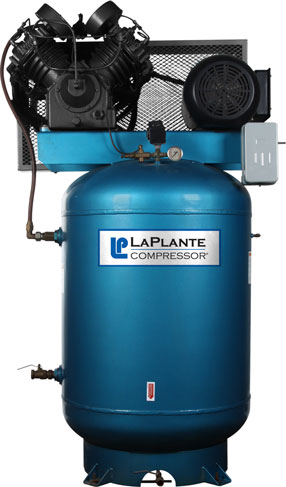

LaPlante Industrial Compressors are engineered and built for rugged use. We use heavy duty, cast iron pumps, premium single phase and three phase motor options, standard 'dual' control, and standard magnetic starters. Every component is specified to provide a minimum of 8000+ hours of continuous, industrial duty performance. Our Industrial Compressors are designed for professional use, working in extreme environments, providing all the air needed to get the job done.
- TEFC (Totally Enclosed, Fan Cooled) Motors
- Kellogg Pumps
- IEC Rated Magnetic Starters
| Manual | Spec Sheet |
|---|---|
| V8051-355 | V8051-355 |
| V8053-355 | V8053-355 |
| V8071-205 | V8071-205 |
| V12071-452 | V12071-452 |
| V12073-452 | V12073-452 |
| V120101-452 | V120101-452 |
| V120103-452 | V120103-452 |
| Model # | Starter | HP | CFM @ 175PSI | Tank Volume (Gal) | Tank Type | Pump RPM (Lower=Better) | Voltage/ Phase | Operating PSI | Weight (Lbs) |
|---|---|---|---|---|---|---|---|---|---|
| V8051-335 | Magnetic | 5 | 15.7 | 80 | Vertical | 695 | 208-230/ Single Phase | 145-175 | 645 |
| V8053-335 | Magnetic | 5 | 15.8 | 80 | Vertical | 701 | 208-230/460/ Three Phase | 145-175 | 645 |
| V8071-205 | Magnetic | 7.5 | 22.4 | 80 | Vertical | 1110 | 208-230/ Single Phase | 145-175 | 750 |
| V12071-452 | Magnetic | 7.5 | 26 | 120 | Vertical | 556 | 208-230/ Single Phase | 145-175 | 980 |
| V12073-452 | Magnetic | 7.5 | 26 | 120 | Vertical | 556 | 208-230/460/ Three Phase | 145-175 | 980 |
| V120101-452 | Magnetic | 10 | 31 | 120 | Vertical | 652 | 208-230/ Single Phase | 145-175 | 980 |
| V120103-452 | Magnetic | 10 | 36 | 120 | Vertical | 735 | 208-230/460/ Three Phase | 145-175 | 980 |
